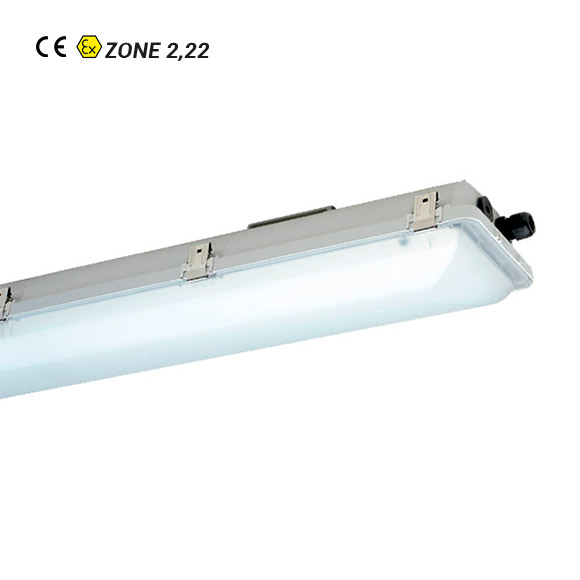

ATEX Emergency Light Fittings Series ExeLed 2 N nD867
LED Emergency light fitting for hazardous locations of zones 2 and 22, in workshops for the illumination of the escape routes, etc.
Description
Emergencies are extraordinary situations. When the lighting fails, panic can quickly ensue. Emergency lighting that is fail-safe and reliable can be a matter of life and death. Here the product series ExeLed 2 N, with its automatic self-monitoring and regular function and duration tests, is an excellent choice. Dependable, extremely long-lasting and extraordinarily efficient, it offers the necessary reliability in an emergency.
Maintained operation: switching over to battery operation in case of mains failure, line modules will be operated with reduced luminous flux as emergency lighting.
Stand-by operation: switching on in case of mains failure.
TECHNICAL DATA
Marking:
II 3G Ex ec IIC T4 Gc
II 3D Ex tc IIIC T80ºC Dc
Certificate: Declaration of Conformity
Housing: Glass fibre reinforced polyester resin. Version H with separate battery box at one small side of the housing. Stainless steel clips (KE), two of them as safety clip (KES), to be opened with screwdriver only.
Cover: Injected polycarbonate, frosted (F) or clear, silicone gasket.
Reflector: Sheet Steel, painted, carrying the LED-modules and all electrical components, clipped into the cover, suspendable.
LED: Line module 5000K, CRI > 80. L70B10 > 100.000h, L80B50 > 100.000h (each at max. ambient temperature)
Battery: NiCd, electronic charger, short circuit protected battery andreverse battery protection
Re-charging time: 24 h, acc. to EN 60598-2-22
Operating temperature: -30ºC to 55ºC. Reduced emergency light duration if operated below 0°C. For nD867 H nominal range acc. to EN60598-2-22, 0°C up to 45°C.
Operating frequency: 50/60 Hz
Rated voltage: 220/240V AC, 50-60Hz
Ingress protection: IP66
Automatic monitoring: of the emergency light fitting according to EN 62034, indica-tion of the test results by 2-coloured LED (luminescence diode) at the luminaire
Connection: 4 poles up to 2,5 mm²
Cable entries: 3xM25x1,5 (2 plastic cable glands – one of them is plugged). Versions H with 2 x M25 x 1,5 at the front end of the light fitting
Additional information
| Certified for use in: | Zone 2, Zone 22 |
|---|
