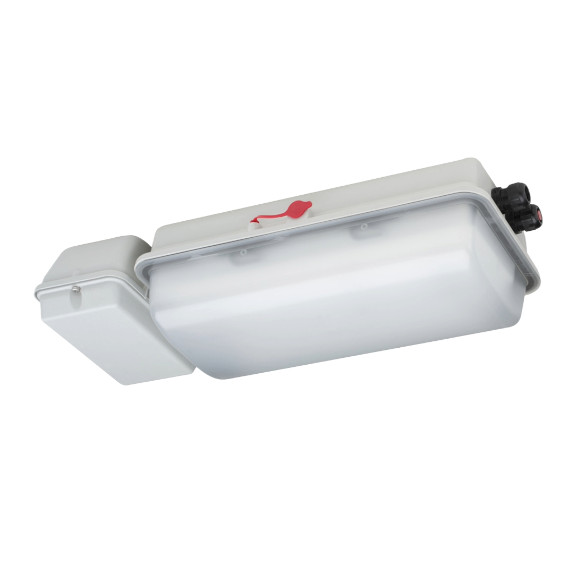

ATEX LED Emergency Light Fittings Series e856
Small LED Emergency light fitting for hazardous areas in Zones 1, 2 and 21, 22 as safety illumination and as information or escape route lighting.
Description
Glass fibre reinforced polyester housing.
Clear polycarbonate, frosted, detachable cover.
Automatic weekly function test and automatic annual duration test. Manual actuation of duration test is possible.
Easy battery replacement due to connector.
White, detachable reflector, carrying the encapsulated LED-modules and glare limitation modules.
Central locking system operated by a hexagonal box spanner 13mm.
TECHNICAL DATA
Marking:
II 2G Ex db eb [ib] mb op is q IIC T4 Gb
II 2D Ex op is tb IIIC T80ºC Db
Certificate: EU-Type Examination Certificate
Housing: Glass fibre reinforced polyester
Cover: Polycarbonate
LED: Line modules ca. 6,500, , typically Ra 80 | L70B10 > 80.000h, L80B50 > 80.000h each at max. ambient temperature
Battery: NiCd, electronic charger
Re-charging time: 24 h
Operating temperature: -30ºC to 55ºC
Operating frequency: 50/60 Hz
Rated voltage: 220/240V AC
Ingress protection: IP66
Connection: Prepared for looping the mains cable at one end 4 x 2.5mm²
Cable entries:
1xM25X1,5 plastic cable gland
1xM25X1,5 plastic plug
Additional information
| Certified for use in: | Zone 1, Zone 21 |
|---|
