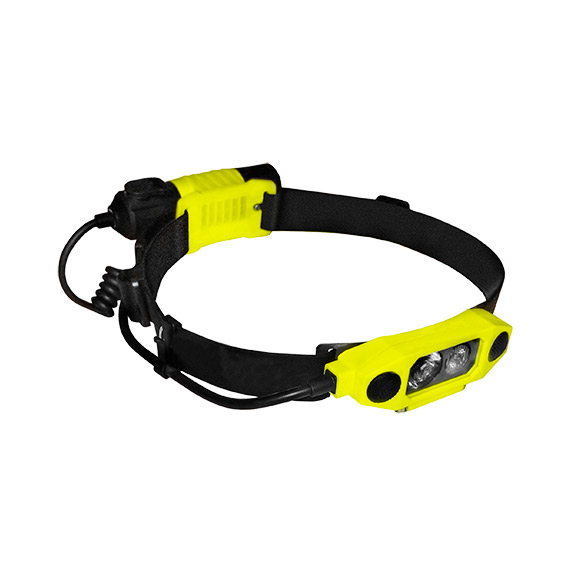

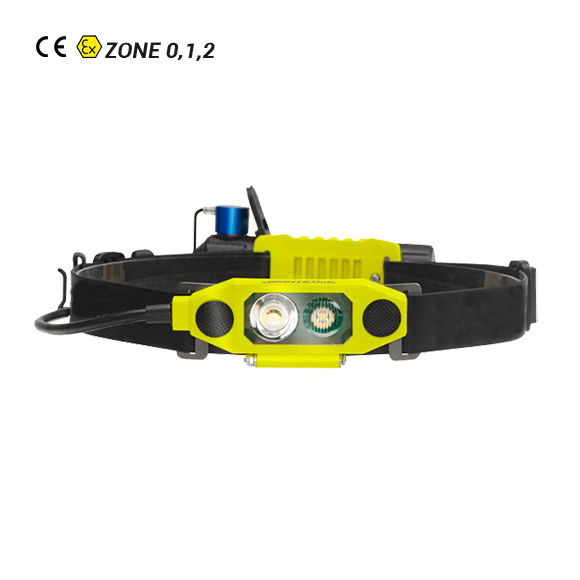

ATEX XPR-5562GX USB Low-Profile DUAL-LIGHT Headlamp

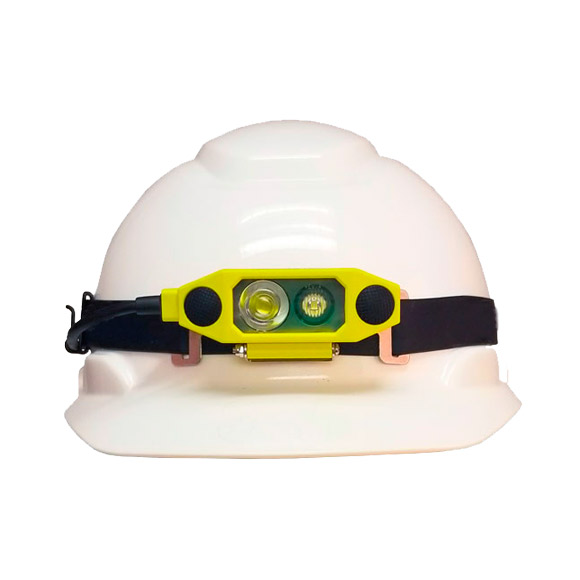

The USB Intrinsically Safe Rechargeable Dual-Light Headlamp is cULus, ATEX and IECEx listed Intrinsically Safe and is designed to work on hard-hats and fire helmets that have a flip-up face shield.
Description
The unique low-profile shape allows you to work without removing the headlamp when raising or lowering a face shield.
The XPR-5562GX is manufactured from engineered polymer and features a multi-position tilt head design. Both the spotlight and the floodlight use LED technology with advanced (TIR) Total Internal Reflection lens designed to optimize lumen output and beam pattern.
Enlarged front-mounted dual switches provide easy access to the spotlight for distance illumination, the floodlight for close-up illumination, and Dual-Light for maximum lighting, versatility, and user safety.

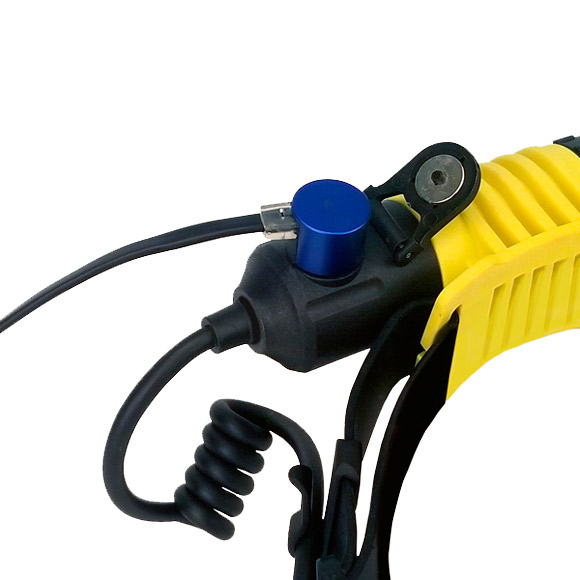

The XPR-5562GX includes a heavy-duty rubber head strap, a 4 foot USB magnetic coupler charge card, and is powered by a Li-Ion rechargeable battery.
TECHNICAL DATA
Marking ATEX:
II 1G Ex ia op is IIC T4 Ga
Marking NEC:
CLASS I DIV 1 GRPS A-D T4
CLASS II & III DIV 1 GRPS E-G T135°C
CLASS I ZONE 0 AEx ia op is IIC T4 Ga
Certificate: EU-Type Examination Certificate
Operating temperature: -20ºC to +40ºC
Case material: Engineered polymer
Spotlight Lumens/Runtime:
HIGH: 275 lm, 6 hrs. runtime
LOW: 100 lm, 15 hrs. runtime
Floodlight Lumens/Runtime:
HIGH: 250 lm, 6 hrs. runtime
LOW: 100 lm, 15 hrs. runtime
Dual-light Lumens/Runtime: 300 lm, 5 hrs. runtime
Candela: HIGH: 3,660
Beam distance: 120 m
Ingress protection: IP67
Drop rating: 2 meters
Dimensions: LENGTH: 31 mm | WIDTH: 95 mm | DEPTH: 25 mm
Weight: 164 g
Battery: Integrated Li-ion
Additional information
| Certified for use in: | Zone 0 |
|---|
