Description

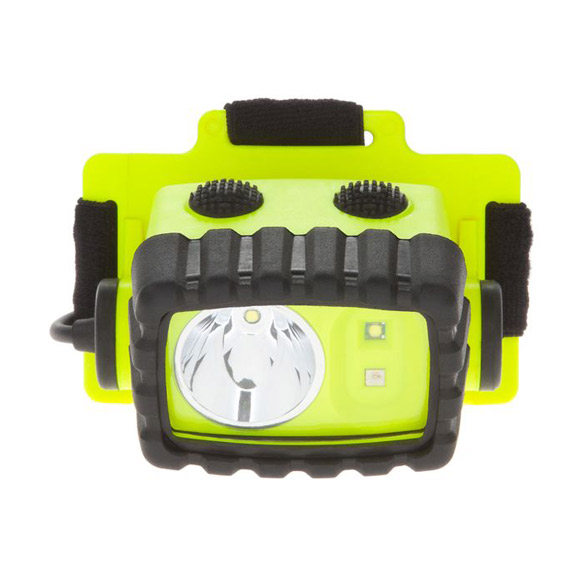

This ATEX headlamp features a multi-position tilt head design, a rear-mounted battery compartment and includes both an elastic head strap with a non-slip lining and a heavy-duty rubber strap for use with hard hats.

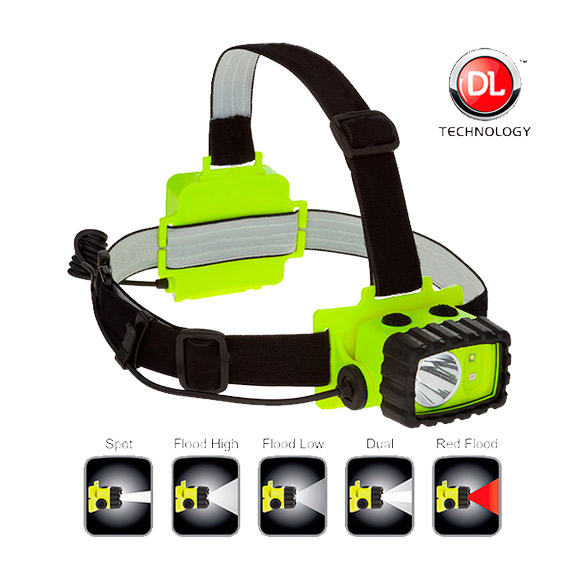

The top mounted dual switches provide spotlight, full-power white floodlight, half-power white floodlight and red floodlight operation.

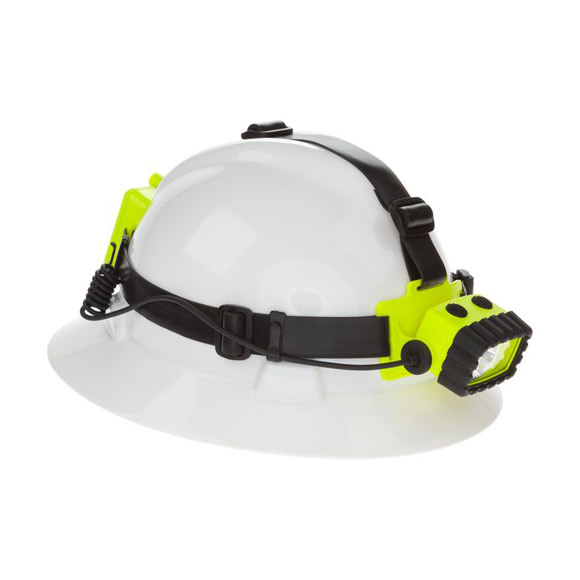

Heavy-duty rubber strap for hard hat applications.
Power comes from 3 AAA batteries (included).
TECHNICAL DATA

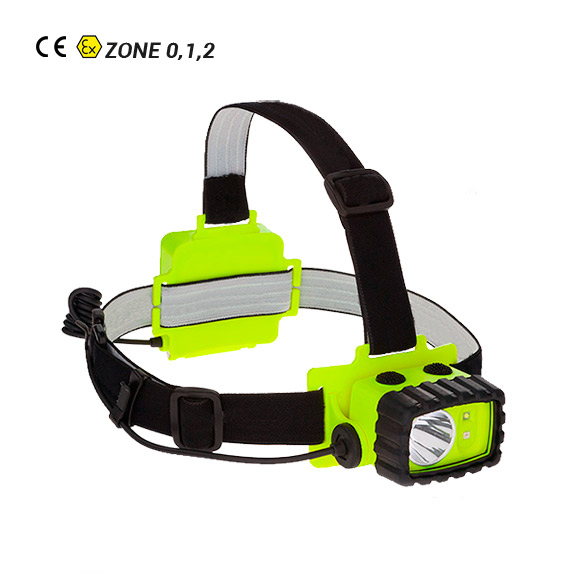

Marking ATEX:
Ex I M1 Ex ia I Ma
Ex II 1G Ex ia IIC T3 Ga
Marking NEC:
CLASS I DIV 1 GRPS A-D T3
CLASS II & III GRPS E-G T135C
CLASS I ZONE 0 AEx ia IIC T3 Ga
CLASS I ZONE 0 Ex ia IIC T3 Ga
Certificate: EU-Type Examination Certificate
Ingress protection: IP67
Light Source: CREE LED (50,000 hours LED life)
Run time:
Flashlight: 18 h
White Floodlight: High 13,5 h | Low 75 h
Red Floodlight: 37 h
Dual-Light: 6,5 h
Luminous flux:
Flashlight: 100 lm
White Floodlight: High: 90 lm | Low: 20 lm
Dual-Light: 175 lm
Red Spotlight: 18 lm
Beam distance: 140 m
Batteries: 3 x AAA (included)
Weight: 269 g
Dimensions: 84 x 84 x 89 mm
Operating temperature: -20ºC to 40ºC
Additional information
Certified for use in: | Zone 0 |
---|
