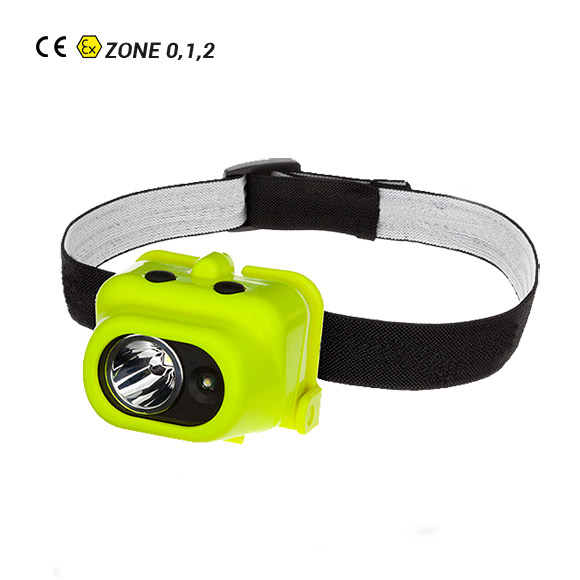

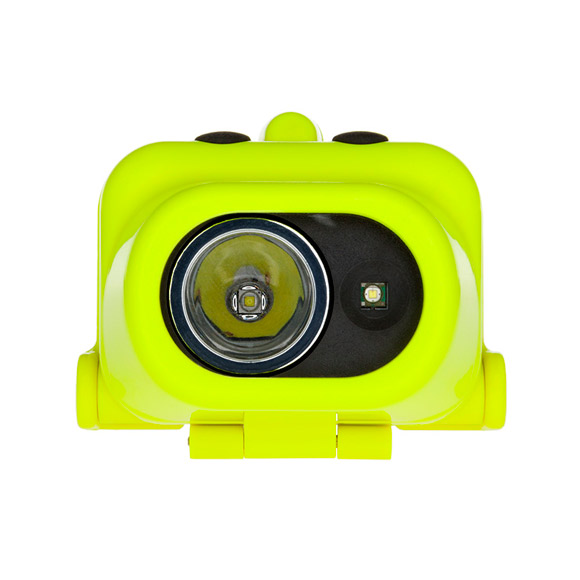

ATEX XPP-5454G Multi-Function Dual-Light Headlamp
This 3 AAA multi-function Dual-Light headlamp is cETLus, ATEX, INMETRO and IECEx listed Intrinsically Safe.
Description

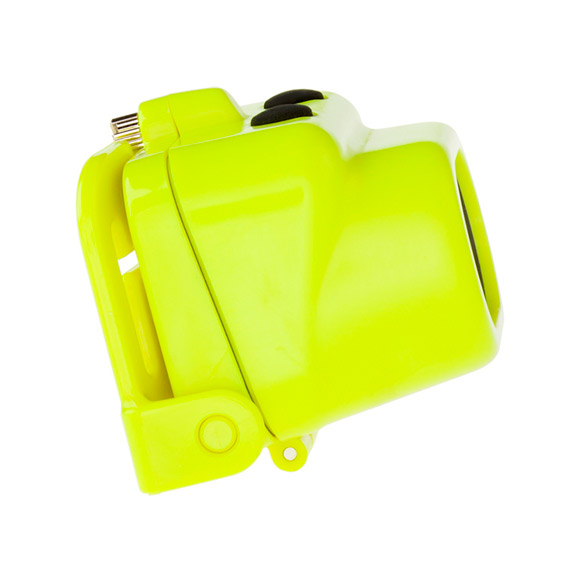

This ATEX headlamp features a multi-position tilt head design and includes an elastic head strap with a non-slip lining and a heavy-duty rubber head strap for use on a hard hat.

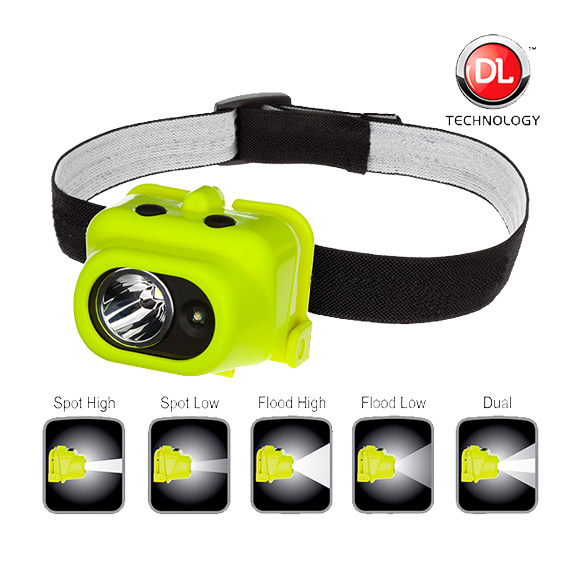

The dual top mounted switches provide user-selectable high or low-brightness spotlight, high or low-brightness floodlight operation and our exclusive Dual-Light design…the ability to turn on both the spotlight and the floodlight at the same time for maximum user safety and lighting versatility.
TECHNICAL DATA
Marking ATEX:
II 1G Ex ia IIC T3 Ga
Marking NEC:
CLASS I DIV 1 GRPS A-D T3
CLASS II & III GRPS E-G T135C
CLASS I ZONE 0 AEx ia IIC T3 Ga
CLASS I ZONE 0 Ex ia IIC T3 Ga
Certificate: EU-Type Examination Certificate
Ingress protection: IP67
Light Source: CREE LED (50,000 hours LED life)
Run time:
Flashlight: High 5 h | Low 16,25 h
Floodlight: High 5,25 h | Low 16,75 h
Dual-Light: 3,5 h
Luminous flux:
Flashlight: High: 115 lm | Low: 60 lm
Floodlight: High: 120 lm | Low: 60 lm
Dual-Light: 160 lm
Beam distance: 82 m / 60 m
Batteries: 3 x AAA (included)
Weight: 94 g
Dimensions: 66 x 45 x 53 mm
Operating temperature: -20ºC to 40ºC
Additional information
| Certified for use in: | Zone 0 |
|---|
