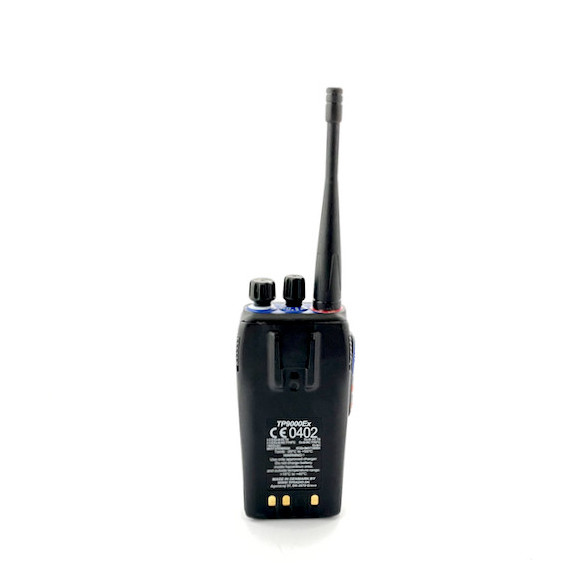

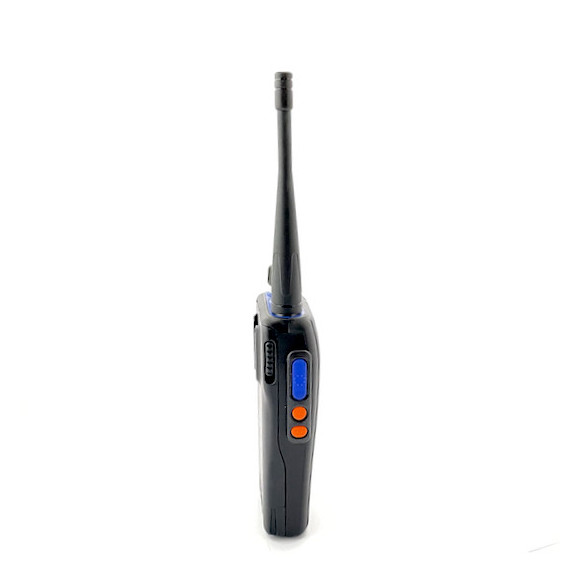

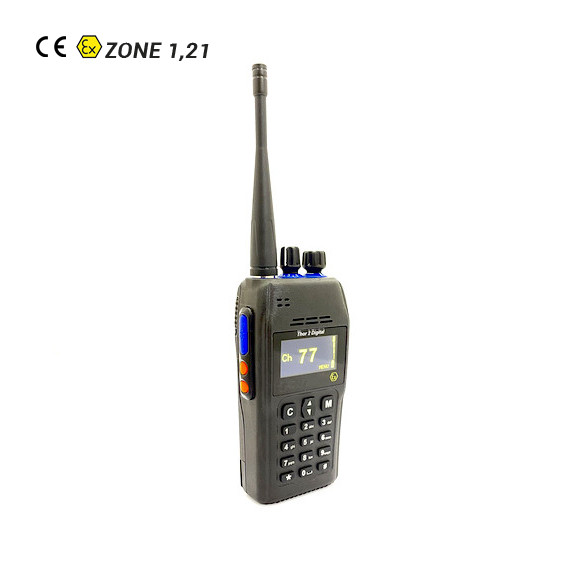

ATEX TP9000Ex Thor2 Portable Radios
TP9000EX Thor2 is a unique product which combines mechanical robustness and the latest state of the art radio technology into a Hand Held Radio with a userfriendly design. Antenna, Battery, Bolt Clip and Charger included.
Description
This ATEX certified radio is IP67 waterproof and can be used as the ultimate communication tool within chemical industries, fire brigades, emergency & rescue services, airports, off-shore industries, etc.
The UHF version is type approved for On Board Communication according to EN 300 720 and fulfils the IEC 60945 marine standards.
A perferct tool to fulfilment of the SOLAS requirement.
Key features:
– IP67 Waterproof
– Power Output 2 Watt
– CTCSS, dcs
– 16+16+99 Channels
– OLED Display
– Long operational time – 3450 mAh battery
DMR Tier 2 Compatible
GENERAL TECHNICAL SPECIFICATIONS
Marking:
I M2 EX ib I
II 2G Ex ib IIC T4
II 2D Ex ib IIIC T110°C
Certificate: EU-Type Examination Certificate
According to the directives: RoHS 2011/65/EU, MED 2014/90/EU & RED 2014/53/EU
Applied standards: EN 62368, EN/IEC 60945, EN 301.489, EN 300.086 & EN300.720 (analog part)
Operating Temperature: -20°C to +55°C
Classifications: IP67 Waterproof / Exceeds MIL 810 c,d,e,f
Channel spacing: 12,5 / 20 / 25 KHz
Frequency error: ± 2 ppm
Operation mode: Simplex / Semi-Duplex
Antenna impedance: 50 ohm
Weight: 260g
Dimensions: H = 137, B = 64, D = 35mm
Operational time (fully charged battery & 2 W TX-output): 5 % TX, 5 % RX & 90 % Standby. 3450 mAh battery: 10/14 hours
Signalling: CTCSS / DSC
Side connector: 16 pin for accessories
RECEIVER TECHNICAL SPECIFICATIONS
DMR sensitivity: – 124 Dbm.
Sensitivity at 20 dB SINAD: 0,45 μV
(EMF) (25 KHz channel spacing) at 12 dB SINAD EMF: 0,3 μV
LF output power: 2 x 0,5 Watt
LF distortion: < 10 %
LF frequency response: 300 – 3000 Hz
Signal / noise ratio: 45 dB
Co-Channel attenuation: -3 dB
Neighbour channel selectivity: > 70 dB
Attenuation of spurious: > 70 dB
Intermodulation selectivity: > 66 dB
Blocking: > 90 dB
Transmission of spurious (antenna & cabinet): 2 nW equivalent to -57 dBm
Squelch tresshold level: Programmable
TRANSMITTER TECHNICAL SPECIFICATIONS
Output Power: Programmable 0.5 – 2 Watt
Transmission of spurious: < 0,25 μW or – 36 dBm
Antenna & cabinet Max. Deviation: ± 5 KHz / 25 KHz channel
Modulation distortion: < 5 % @ ± 3,0 KHz
Signal / noise relation: 45 dB
LF frequency response: 300 – 3000 Hz
