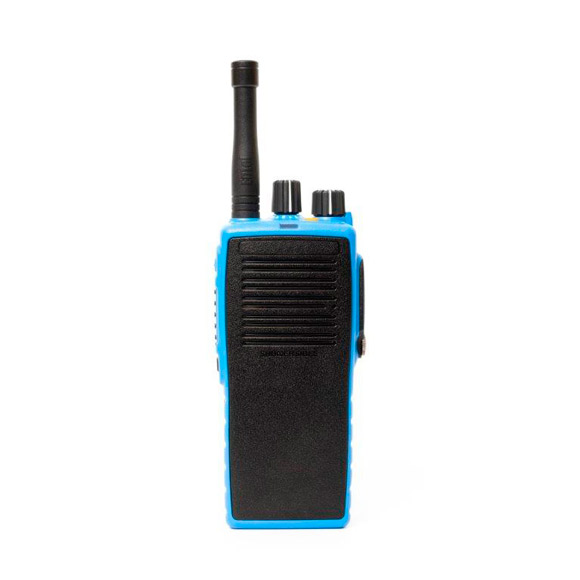

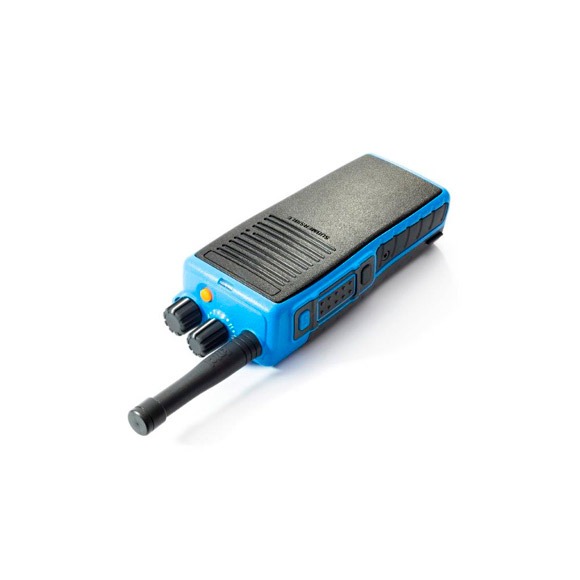

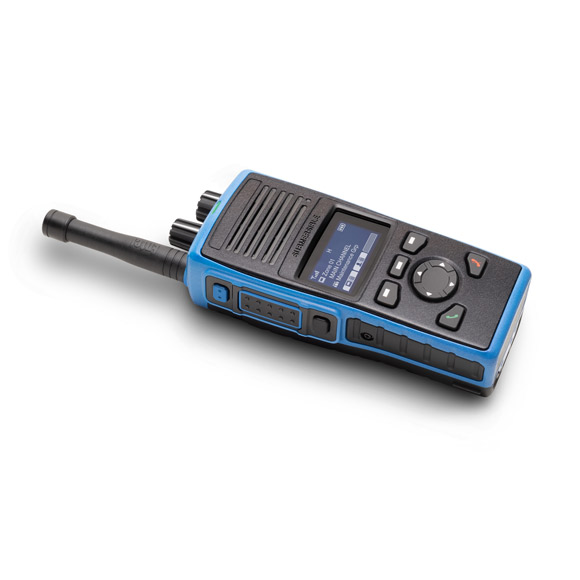

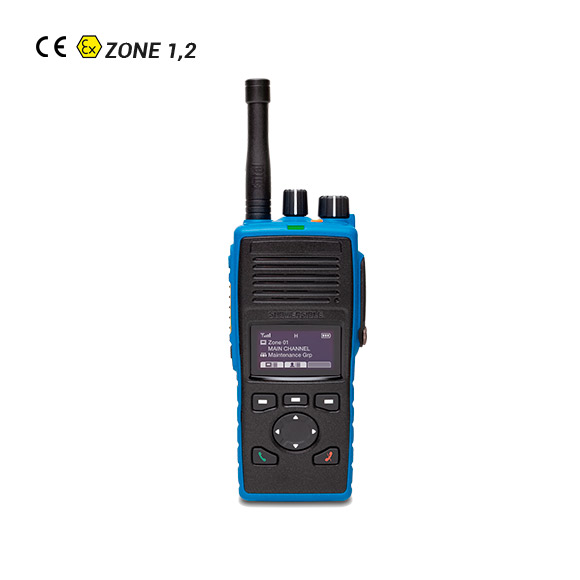

ATEX Radios (Zone 1,2)

Professional range of ATEX IIA & IIC certified radios designed and manufactured to meet IP68 specification for total protection against water and dust intrusion.

With commercial grade construction, these radios are designed to withstand shock, vibration, dust and moisture, ensuring a tough enduringperformance and many years of trouble free use, even in the most hostile environments.

Its design makes it valid for operation in petrochemical plants, industrial facilities and marine ports.

Rechargeable Li-Ion battery, belt clip, antenna and rapid charger included.
(Not supplied with HTxx5 & HTxx6).

– Versions include Non-Display and LCD Display
– Versiones con y sin licencia
– IP68 (2 metres for 4 hours) submersible
– High standard robust construction
– Superior voice quality and high audio output
– High efficiency antenna

Can be used in:
GAS GROUP IIA: II 2G Ex ib IIA T4 Gb
GAS GROUP IIC: II 2G Ex ib IIC T4 Gb
Zones: 1, 2.



Download Product Data Sheet - Inpratex

Category:

GAS GROUP IIA

Technical data models Entry and Entry Selcall (Land and Marine versions):

Marking: II 2G Ex ib IIA T4 Gb
Certificate: EU-Type Examination Certificate
Channels: 16
Channel Spacing: 12,5 kHz / 25 kHz
Communication: Simplex / semi duplex
Antenna impedance: 50 ohm
Battery: 1800 mAh Li-Ion
Operating Voltage: 7,4V DC
Operating temperature: -20º to +55º C
Dimensions: 59,5 x 130 x 37 mm
Weight: 277g
Power Output: HIGH 4W, LOW 1W
Ingress protection: IP68 (2 metres for 4 hours submersible)

Technical data models Entry LCD, LCD and Keypad (Land and Marine versions):

Marking: II 2G Ex ib IIA T4 Gb
Certificate: EU-Type Examination Certificate
Channels: 255
Channel Spacing: 12,5 kHz / 25 kHz
Communication: Simplex / semi duplex
Antenna impedance: 50 ohm
Battery: 1800 mAh Li-Ion
Operating Voltage: 7,4V DC
Operating temperature: -20º to +55º C
Dimensions: 59,5 x 130 x 37 mm
Weight: 277g
Power Output: HIGH 4W, LOW 1W
Ingress protection: IP68 (2 metres for 4 hours submersible)

Technical data models Entry LCD, LCD and Keypad (Trunked Variants):

Marking: Ex II 2G Ex ib IIA T4 Gb
Certificate: EU-Type Examination Certificate
Channels: 1023
Channel Spacing: 12,5 kHz / 25 kHz
Communication: Simplex / semi duplex
Antenna impedance: 50 ohm
Battery: 1800 mAh Li-Ion
Operating Voltage: 7,4V DC
Operating temperature: -20º to +55º C
Dimensions: 59,5 x 130 x 37 mm
Weight: 277g
Power Output: HIGH 4W, LOW 1W
Ingress protection: IP68 (2 metres for 4 hours submersible)

GAS GROUP IIC

Technical data models Entry and Entry Selcall (Land and Marine versions):

Marking: II 2G Ex ib IIC T4 Gb
Certificate: EU-Type Examination Certificate
Channels: 16
Channel Spacing: 12,5 kHz / 25 kHz
Communication: Simplex / semi duplex
Antenna impedance: 50 ohm
Battery: 1800 mAh Li-Ion
Operating Voltage: 7,4V DC
Operating temperature: -20º to +55º C
Dimensions: 59,5 x 130 x 37 mm
Weight: 277g
Power Output: 1W
Ingress protection: IP68 (sumergible 2m 4 horas)

Technical data models Entry LCD, LCD and Keypad (Land and Marine versions):

Marking: II 2G Ex ib IIC T4 Gb
Certificate: EU-Type Examination Certificate
Channels: 255
Channel Spacing: 12,5 kHz / 25 kHz
Communication: Simplex / semi duplex
Antenna impedance: 50 ohm
Battery: 1800 mAh Li-Ion
Operating Voltage: 7,4V DC
Operating temperature: -20º to +55º C
Dimensions: 59,5 x 130 x 37 mm
Weight: 277g
Power Output: 1W
Ingress protection: IP68 (2 metres for 4 hours submersible)

Technical data models Entry LCD, LCD and Keypad (Trunked Variants):

Marking: II 2G Ex ib IIC T4 Gb
Certificate: EU-Type Examination Certificate
Channels: 1023
Channel Spacing: 12,5 kHz / 25 kHz
Communication: Simplex / semi duplex
Antenna impedance: 50 ohm
Battery: 1800 mAh Li-Ion
Operating Voltage: 7,4V DC
Operating temperature: -20º to +55º C
Dimensions: 59,5 x 130 x 37 mm
Weight: 277g
Power Output: 1W
Ingress protection: IP68 (2 metres for 4 hours submersible)
