The TDD-BAD-BBB-TF is an explosion-protected LED TOF distance sensor designed for reliable object detection and distance measurement in hazardous areas. With a measuring range from 100mm to 1000mm, RS-485 communication and a short-circuit protected push-pull digital output, it provides a robust solution for industrial applications requiring precise proximity detection.
Marking:
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T100°C Db
Certificate: EU-Type Examination Certificate
SEE DATA SHEET FOR FURTHER INFORMATION:

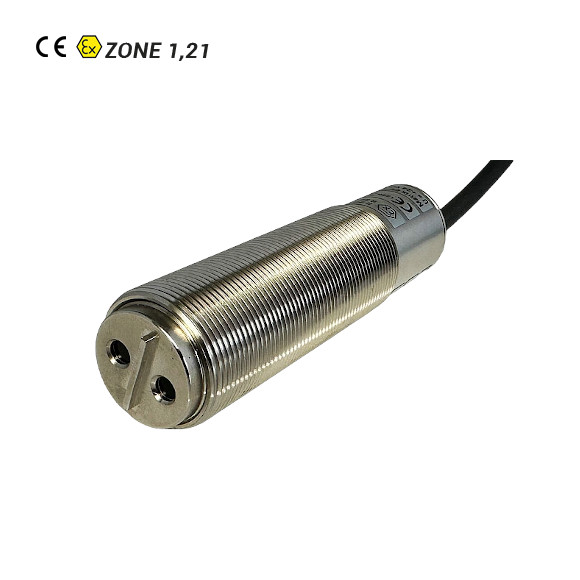

Its M30 nickel-plated brass housing, IP67 protection rating and ATEX/IECEx certifications make it suitable for use in gas and dust explosive atmospheres, specifically in Ex zones 1, 2, 21 and 22.
THE DIFFERENT AVAILABLE VERSIONS ARE DETAILED IN THE DATA SHEET
