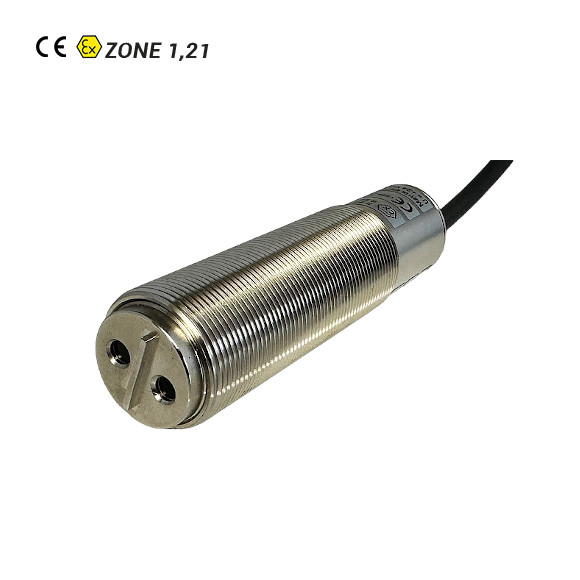

The TDD-BAC-BBA-TF LED TOF ATEX distance sensor is a compact and rugged solution designed for reliable distance measurement in hazardous environments. Using 860nm infrared light, it measures distances from 100mm to 1000mm independently of object reflectance. Cable length: 10m
Marking:
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T100°C Db
Certificate: EU-Type Examination Certificate
SEE DATA SHEET FOR FURTHER INFORMATION:
Housed in a flameproof M30 metal enclosure and certified for use in gas and dust Ex zones, this ATEX stance sensor offers high durability, IP67 protection, featuring RS485 communication together with a 4–20 mA analogue output.
THE DIFFERENT AVAILABLE VERSIONS ARE DETAILED IN THE DATA SHEET
