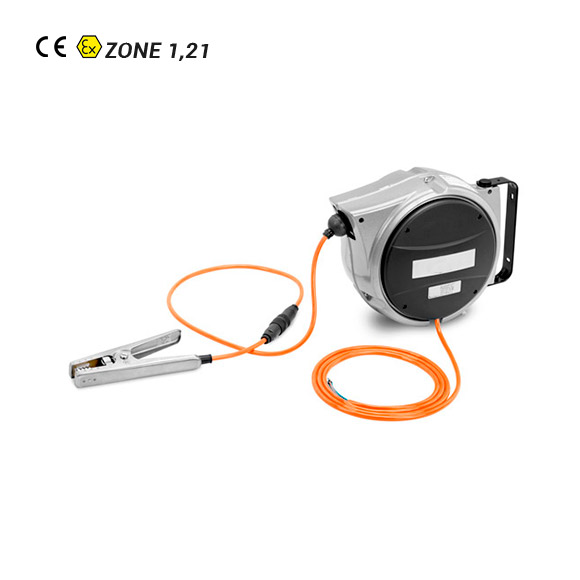

ATEX Rewinding Cable Reels for Passive Grounding Type 601 KR/EW

Description

For use without ground monitoring system in ATEX Zones 1, 2, 21 and 22. It is supplied with 70PK type clamp.

This reel is designed for wall mounting, but can also be swivel-mounted using a mounting bracket. A coupling plug can be used to easily connect the passive 70PK clamp with the coupling bushing of the grounding cable.

TECHNICAL DATA

70 PK CLAMP
Marking:
II 1G IIB T6 Ga, II 2G IIC T6 Gb, II 1D T80°C Da
Certificate: EU-Type Examination Certificate
Clamp material: Stainless steel
Operating temperature: -20ºC to +70ºC
Ground cable (color: orange):
Oil and gasoline resistant control lead, 3 x 1.5 mm²
Temperature range –40…+90°C
Connected 4-pin plug IP67
Dimensions: See data sheet
Weight: Approx. 0.29 kg
Clamping width: 35 mm
Clamping force: 100 N ±20%
Earth leakage resistance: < 1 Ohm

601KR/EW CABLE REWINDER
Marking:
II 2G Ex ia IIC T6 Gb
II 2D Ex ia IIIC T135°C Db
Certificate: EU-Type Examination Certificate
Enclosure: Aluminium with rolls and stopper
Ingress protection: IP42 according to EN 60529
Operating temperature: -40ºC to +70ºC
Attachment: Wall assembly via assembly bracket
Ground cable (12 M):
Oil and gasoline resistant control lead, 3 x 1.5 mm²
Temperature range –40…+90°C
Connected 4-pin socket IP67
Connecting lead: 2.5 m, connecting cable 3 x 1,5 mm²
Dimensions: See data sheet
Weight: Approx. 5.7 kg with 12 m ground cable
Inductance: Approx. 0.07 mH
Capacitance: Approx. 1.6 nF
