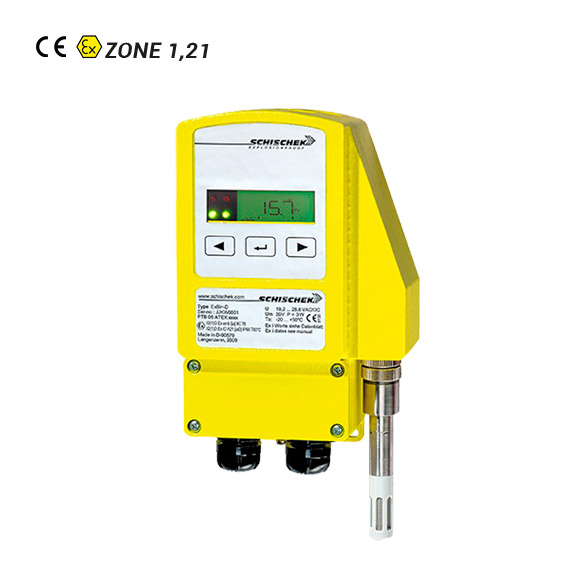

ExBin-D explosion-proof transmitter for ExPro-B… temperature/humidity sensors, for all types of gases, mists, vapours and dust for use in zone 1,2,21 and 22.

– Actual value indication display
– Status indicator via LEDs

All sensors are programmable on site without any additional tools. The switching points are scalable within the maximum ranges. The integrated display (can be switched off as needed) is for parametrisation and an actual value indication at working mode.

Can be used in:
II 2(1)G Ex e mb [ia Ga] IIC T6 Gb
II 2(1)D Ex tb [ia Da] IIIC T80°C Db IP66
Zones: 1, 2, 21, 22.



Download Product Data Sheet - Inpratex

Marking:
II 2(1)G Ex e mb [ia Ga] IIC T6 Gb
II 2(1)D Ex tb [ia Da] IIIC T80°C Db IP66

Certificate: EU-Type Examination Certificate

Power supply: 24 VAC/DC, 50…60 Hz

Current consumption: 150 mA

Electrical connection: Terminals 0,14…2,5 mm² at integrated Ex terminal box

Display / Control elements: Matrix LCD / 3 buttons for configuration

Outputs:
Potential free switching contact – breaking / making contact, adjustable per menu
Max. rating load: 0,5 A (30 VAC/DC) – 0,1 A (220 VDC) Power 40 W, 10 W per channel
Min. rating load: 10 mW / 0,1 V / 1 mA

Housing: Aluminium IP66

Ambient temperature – humidity: -20…+50 °C / 0…95 % rH

Dimensions: 180 × 107 × 66 mm

Weight: ~ 1 Kg

Cable entries: 2xM16x1,5 plastic cable gland
