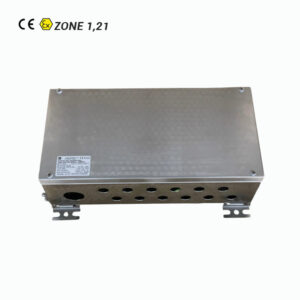

ATEX Stainless Steel Juction Box – 30 Terminals / 10 Cable Entries
Custom configurable stainless steel ATEX junction box for installation in hazardous areas in zones 1, 2, 21 and 22.
Equipped with 10 2.5mm2 terminals and 10 M20x1.5 cable entries, 5 on the upper side and 5 on the lower side.
Description
The stainless steel enclosures are build in acordance to the individual request and will be equipped with terminals and cable glands.
TECHNICAL DATA
Marking:
II 2G Ex eb IIC T6 Gb
II 2D Ex tb IIIC T80°C Db
Certificates: EU-Type Examination Certificate
Operating temperature: -20ºC to +55ºC
Material: Stainless Steel 316 L
Dimensions: 200x200x121 mm
Design: Screwed lid
Terminals: 30 x 2,5mm2
PE connection: External, internal on base and lid
Ingress protection: IP66
Accessories: Wall mounting brackets
Cable entries: 10xM20 (cable glands / plugs not included)
