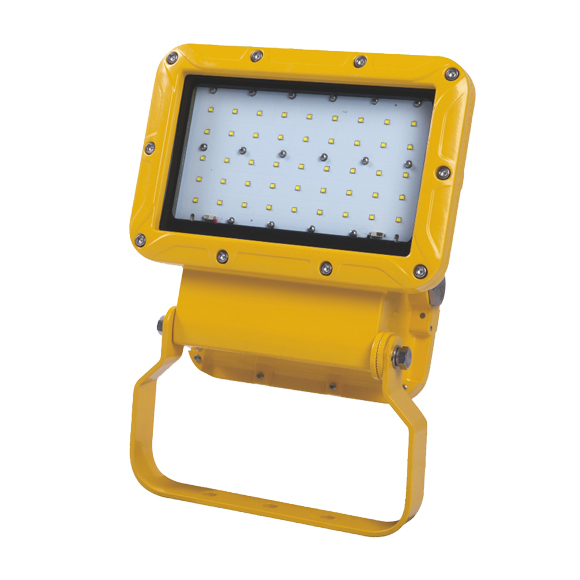

Explosion-proof LED floodlight for hazardous locations of Zones 1,2 (gas atmosphere) and 21,22 (dust atmosphere).

Copper-free aluminium housing, powder coated surface (yellow RAL 1021).
Toughened glass cover, stands 4J impact.

Power factor ≥ 0,95

Can be used in:
Zones 1, 2, 21, 22.



Download Product Data Sheet - Inpratex

SKU: BAT86 Category: Tag:

Marking:
BAT86 – 90:
II 2G Ex db IIB+H2 T6/T5 Gb
II 2D Ex tb IIIC T80ºC/T95ºC Db IP65

BAT86 – 160
II 2G Ex d IIB T* Gb
II 2D Ex tb IIIC T* Db IP66

BAT86 – 240
II 2G Ex db op is IIB+H2 T* Gb
II 2D Ex tb op is IIIC T* Db IP66

Certificate: EU-Type Examination Certificate

Operating conditions: Indoor / Outdoor

Housing: Copper-free aluminium (yellow RAL1021)

Cover: Toughened glass cover, stands 4J impact.

Operating frequency: 50/60 Hz

Rated voltage: 100-300 V AC

Colour temperature: 5400-6500K

Terminals: 3×1,5~4 mm2 (L+N+PE)

Ingress protection: IP66

Cable entries: 2xM25x1,5 (Plugs)
