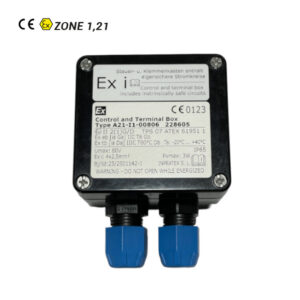

ATEX GRP Ex i Junction Box 4 Cable Entries – 10 Terminals
GRP (glass-reinforced polyester) junction box, suitable for use within ATEX rated Ex i intrinsically safe circuits.
Description
The box includes 4 cable entries with blue polyamide M20x1,5 and is equipped with 10×2.5mm2 blue terminals + 2 earth terminals.
TECHNICAL DATA
Marking:
II 2(1)G Ex eb [ia Ga] IIC T6 Gb
II 2(1)D Ex tb [ia Da] IIIC T80ºC Db
Certificate: EU-Type Examination Certificate
Housing: Glass Reinforced Polyester (GRP)
Dimensions: 110x75x55 mm
Operating temperature: -20ºC to +40ºC
Terminals: 10 x 2,5mm2 + 2 PE
Ingress protection: IP65
Cable entries: 4xM20x1,5 plastic blue cable glands (7-13 mm)
