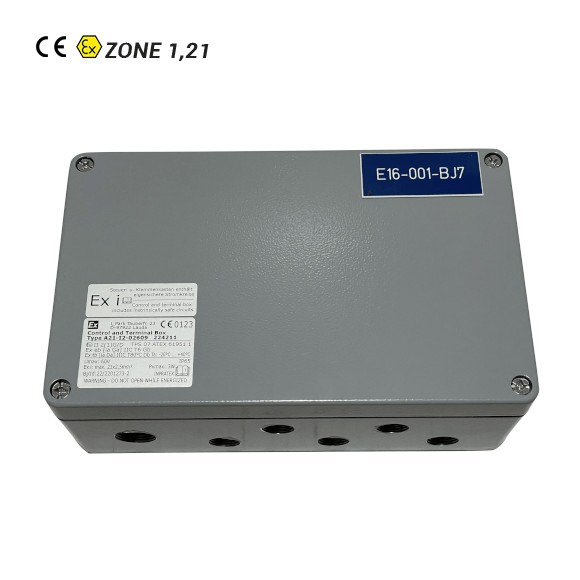

ATEX Ex i Aluminium Junction Box – 8 Entries 2 Terminals

Description

Manufactured in aluminum.

The box has 1xM25 and 7xM20 cable entries, and is equipped with 21 2.5mm² blue terminals + 2 ground terminals.

TECHNICAL DATA

Marking:
II 2(1)G Ex e [ia Ga] IIC T6 Gb
II 2(1)D Ex tb [ia Da] IIIC T80ºC

Certificate: EU-Type Examination Certificate

Housing: Aluminium | Optional tag blue background and white text (80×30 mm)

Dimensions: 280x230x110mm

Operating temperature: -20ºC to +40ºC

Terminals: 21 x 2,5mm² + 2 PE

Ingress protection: IP65

Cable entries: 1x M25x1,5 | 7x M20x1,5
