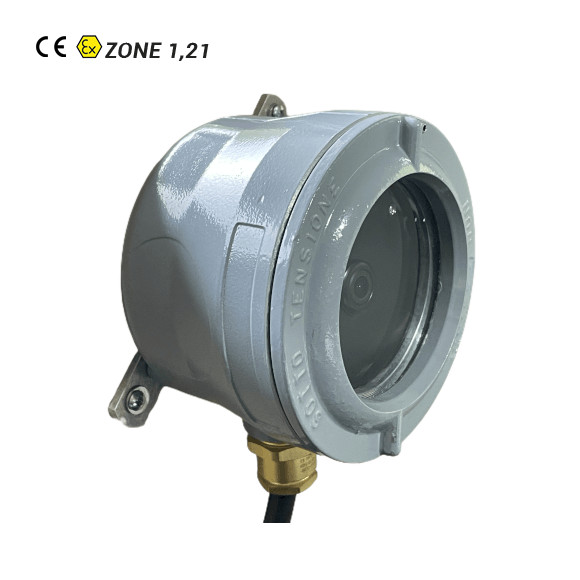

ATEX CTTV Camera AkONDIA 749-V1
AkONDIA 749-V1 is a low resolution, cost-effective ATEX video surveillance and security camera. Perfect for monitoring processes or spaces that do not require a high video resolution and prioritize equipment costs.
Description
Another key feature of the ATEX AkONDIA 749-V1 is its physical robustness, allowing it to operate in demanding industrial environments.
Ex d cast aluminum enclosure and tempered glass window.
TECHNICAL DATA
Marking:
II 2G Ex d IIC T6 Gb
II 2D Ex tb IIIC T85°C Db
Certificate: EU-Type Examination Certificate
Operating temperature: -20ºC to +40ºC
Housing: SOF 57N. Aluminum light alloy. External Epoxy RAL7000
Ingress protection: IP66
Weight: 1,5 kg approx.
Terminals: 4 x 1,5mm2 + PE 1,5mm2
Camera: CCTV (color)
Power supply: 12VDC
Current consumption: 68mA
Resolution: 1Mpx
Horizontal resolution: 420TVL
Minimum illumination: 0,2Lux
Compression: H264
Lens angle: 135º
Maximum signal transmission distance without signal loss: 12m
Pin description:
PE: general system grounding
Y: video signal
GND: video ground (here would go the ground of the RCA or BNC connectors)
-: power supply negative
+: power supply positive
Cable entries: 1×3/4” cable gland for armoured cable (13,2-20,5mm)
