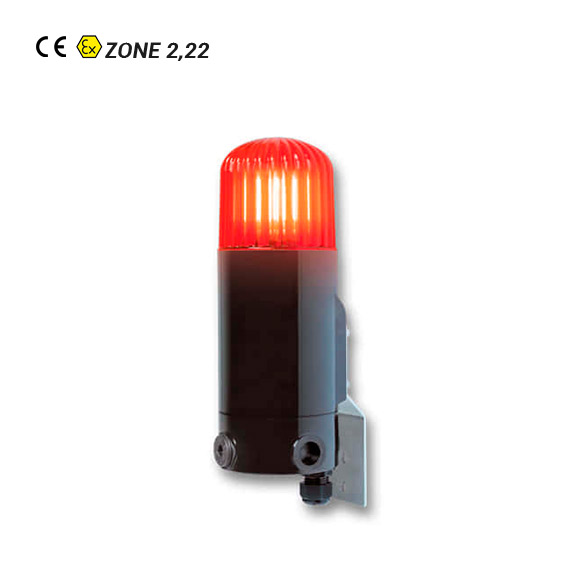

In potential explosive atmospheres it is often necessary to use optical signals for warning, indicating and signalling purposes. The Ex-Strobe light BZ2/BD22 offers these signalling options.

The BZ2/BD22 Strobe Light is activated by connecting the supply voltage. It may be delivered with 5 different dome colours.

The sturdy housing made of impact-resistant polycarbonate is realized in protection class IP66 and allows for indoor and outdoor applications. The dome consists of impact resistant coloured polycarbonate.

A powerful Xenon flash tube transforms the electrical energy stored in the flash capacitor into light flashes with a high degree of efficiency.

Dome cap available in 5 differents colors.

Stainless steel wall bracket.
Operating position: Any. The mounting angle can be rotated 90º.

Operating mode: Continuous operation

Can be used in:
II 3G Ex nR IIC T5/T4 Gc
II 3D Ex tc IIIC T85ºC Dc
Zones: 2, 22.



Download Product Data Sheet - Inpratex

Marking:
II 3G Ex nR IIC T5/T4 Gc
II 3D Ex tc IIIC T85ºC Dc

Certificate: Declaration of Conformity

Operating conditions: Indoor / Outdoor

Housing: Polycarbonate (black)

Cap: Polycarbonate (transparent, red, green, bleu, yellow)

Ingress protection: IP66

Flash energy: XENON lamp – 15 J

Flash frequency: 60/min

Connection: Terminals 2,5 mm2

Weight: Approx. 1,4 kg

Cable entries: 3xM20x1,5 | 1 plastic cable gland | 2 plastic plugs
