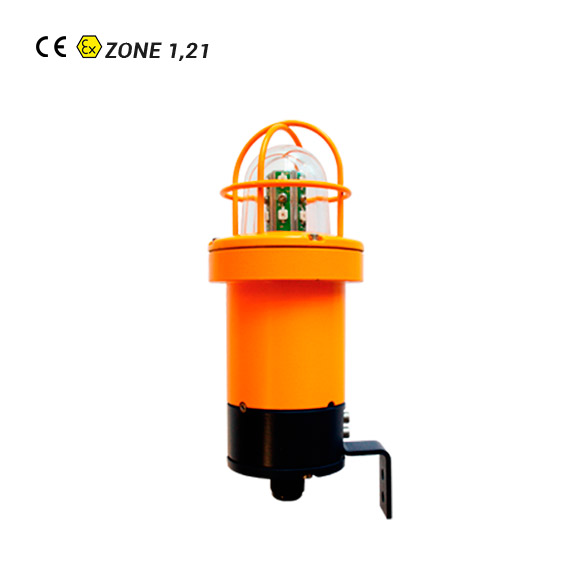

ATEX Strobe Light dSLB20 LED
This Optical signalling device is often required for warning or notifying purposes in potentially explosive areas. The ATEX Strobe Light dSLB 20 LED provides suitable signalling for these purposes.
Description
It is designed for continuous operation and available for different operating voltages.
The ATEX dSLB 20 LED is activated by connecting the power supply. The sturdy housing of ingress protection IP66/67 is suitable for both indoor and outdoor applications.

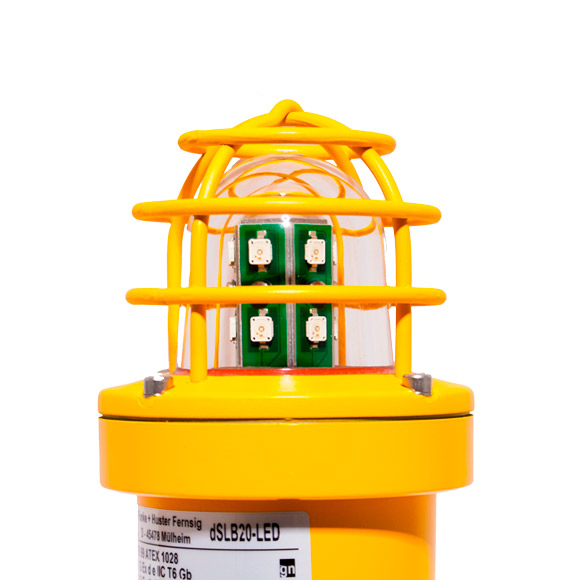

This Ex II strobe light has a small flameproof aluminium housing containing the electronics. The cap is made of hardened boro silicate glass. The terminal compartment is of protection type “increased safety”.
A signalling combination can be established using the provided stainless steel mounting plate with integrated junction box.
TECHNICAL DATA
Marking:
II 2G Ex de IIC T5, T6 Gb
II 2D Ex tb IIIC T95ºC, T80º Db
Certificate: EU-Type Examination Certificate
Operating conditions: Indoor / Outdoor
Housing: Aluminium, surface varnished or powder-coated. Borosilicate glass dome
Cap colour: Transparent, Red, Amber, Green, Blue
Weight: Approx. 2 kg
Operating temperature: -40ºC to 40ºC
Ingress protection: IP66/67
Cable entries: 1xM20x1,5 plastic cable gland
Additional information
| Certified for use in: | Zone 1, Zone 21 |
|---|
