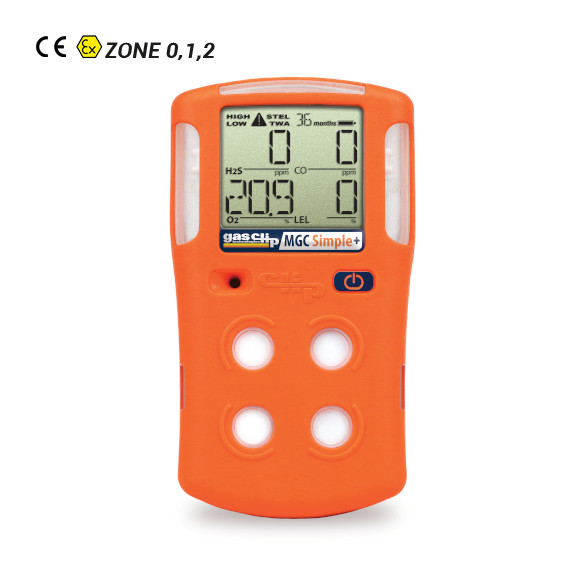

Multi Gas Clip Simple Plus
Description
Just turn it on and have worry free assurance of protection against toxic gases 24/7 for 3 full years.
• Operates for 3 years continuously with no charging
• Detects combustible gases (LEL), hydrogen sulfide (H2S), carbon monoxide (CO) & oxygen (O2)
• Routine calibrations not necessary saving test gas & downtime
• Infrared LEL sensor does not require oxygen to detect gas
• Low maintenance cost – infrared LEL sensor is immune to poisons
• Simple-to-use one-button operation & large, easy-to-read screen
• Lightweight & durable – alligator clip clamps on tight
Marking:
II 1G Ex ia IIC T4 Ga
Certificate: EU-Type Examination Certificate
Ambient temperature: -40°C to +50°C
Humidity: 5% to 95% RH (non-condensing)
Battery Life: 1095 Days continuous (based on avg. of 1 minute of alarm/day)
Alarms: Visual, vibrating & audible (minimum 95 dB). Low, High, STEL, TWA & OL (Over Limit)
LEDs:
4 red alarm bar LEDs
Yellow back-light (activated on button press)
Red back-light (activated on alarm condition)
Yellow maintenance notification LED
Display: High viewing angle alphanumeric Liquid Crystal Display (LCD)
Logs: 50 Bump tests, 50 events, 50 calibrations. Continuous 1 second data logging (typical capacity > 2 months)
Tests: Full function self-test upon activation. Sensors, battery and circuitry tests run continuously
Ingress protection: IP68
Weight: 220 g
Dimensions: 120.65 x 69.85 x 31.75 mm
Sensor Type: H2S, CO & O2: Plug-in electrochemical cell | Combustible (LEL): Soldered infrared (IR)
User Options: Custom user message, TWA/STEL intervals, Languages (6), Latching alarms, Self-test lock, Bump test interval, Low/High alarm, Maintenance notification, TWA method, Sensor enable/disable, SAFE display, Dock lock, Calibration gas concentration, Calibration interval, TWA/STEL alarm, % LEL or % CH4 by-vol
