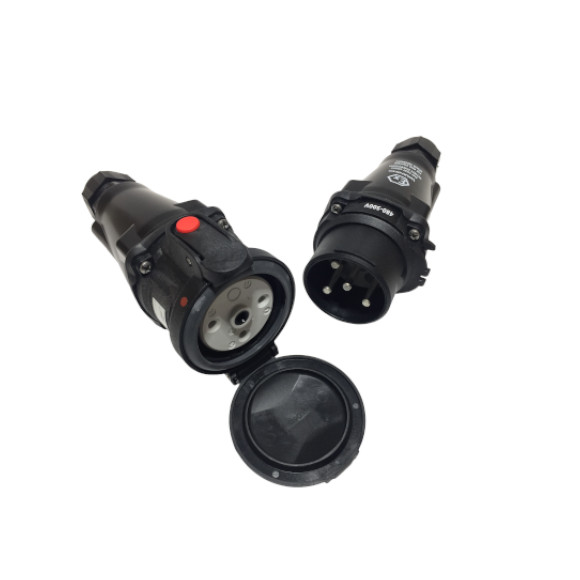

ATEX plugs and socket-outlets with integrated switch, designed for hazardous areas. With ‘de’ protection mode, they comply with the ATEX 2014/34/EU Directive.

They can be used in zones 1 & 2 (Gas) and zones 21 & 22 (Dust). They are certified according to IECEx standards.

Robust and compact design.
High performance GRP casing.

Can be used in:
Zones: 1, 2, 21, 22.



Download Product Data Sheet - Inpratex

SKU: bases-clavijas Category: Tag:

Marking:
20A
II 2G Ex de IIC T*Gb
II 2D Ex tb IIIC T*Db
* -40ºC ≤ Ta ≤ +60ºC T5 T90ºC | -40ºC ≤ Ta ≤ +40ºC T6 T70ºC
EU-Type Examination Certificate

32A
II 2G Ex de IIC T*Gb
II 2D Ex tb IIIC T*Db
* -40ºC ≤ Ta ≤ +60ºC T5 T77ºC | -40ºC ≤ Ta ≤ +40ºC T6 T57ºC
EU-Type Examination Certificate

63A
II 2G Ex de IIC T*Gb
II 2D Ex tb IIIC T*Db
* -40ºC ≤ Ta ≤ +60ºC T4 T107ºC | -40ºC ≤ Ta ≤ +40ºC T5 T87ºC
EU-Type Examination Certificate

Operating conditions: Indoor / Outdoor
Housing: GRP
Ingress protection: IP66/67
Shock resistance: IK08
Ambient temperature: -40ºC to +60ºC

Cable entries:
Socket:
20A -> 1xM20x1,5 (7 – 14 mm)*
32A -> 1xM25x1,5 (10 – 18 mm)*
63A -> 1xM32x1,5 (17 – 24 mm)*

Plug / Coupler
20A -> 1xM20x1,5 (7 – 14 mm)*
32A -> 1xM25x1,5 (10 – 18 mm)*
63A -> 1xM40x1,5 (17 – 31 mm)*
*unarmoured cable
