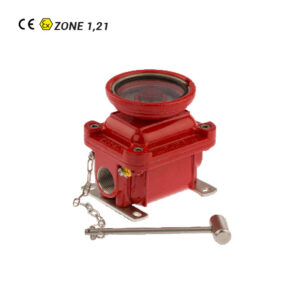

ATEX Manual Call Point
The Ex Manual Call Point is designed for manual fire alert purposes in potentially explosive areas. Its protection type allows for applications in all Ex areas of zones 1, 2, 21 and 22. Type B Manual Call Point according to EN 54-11.
Description
Flexible, system-suited application thanks to different resistor modules.
Housing made of glass fiber-reinforced polyester. All metal parts made of stainless steel.
TECHNICAL DATA
Marking:
II 2G Ex de mb IIC T6 Gb, T5 Gb
II 2D Ex tb IIIC T100ºC Db IP66
Certificate: EU-Type Examination Certificate
Housing: Glass fibre reinforced polyester | Colour: Red RAL 3000
Surface resistance: Electrostatially conductive
Operating temperature: -55ºC to +65ºC (T6) | -55ºC to +70ºC (T5)
Switching contact: Changeover contact
Contact rating: Max. 5 A/250 VAC | 0.25 A/250 VDC
Connection terminals: Up to 4 mm2 single or fine-wire
Dimensions: Approx. 136 x 138 x 88 mm
Weight: Approx. 1,8 kg
Ingress protection: IP 66 according to IEC 60529
Operating position: Wall mounting
Cable entries: 1x M20x1.5 plastic cable gland | 1x M20x1.5 plastic blind plug
