THE DIFFERENT AVAILABLE VERSIONS ARE DETAILED IN THE DATA SHEET
GRP (glass-reinforced polyester) junction box, suitable for use within ATEX rated Ex i intrinsically safe circuits.

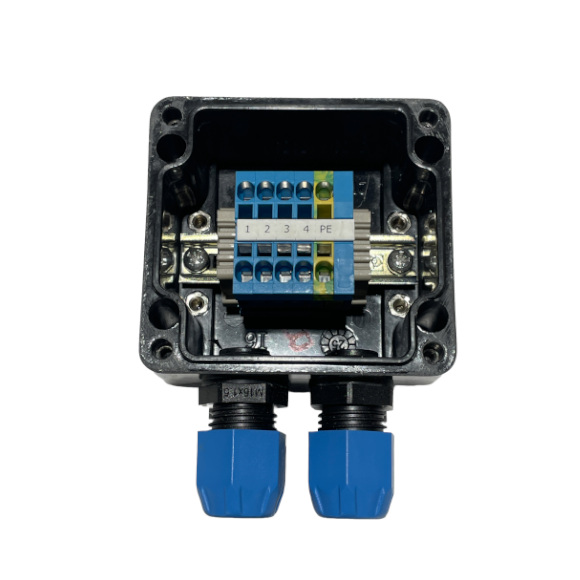

The box includes 2 cable entries with blue polyamide glands M16x1.5 and is equipped with 4 2.5mm2 blue terminals + 1 earth terminal.

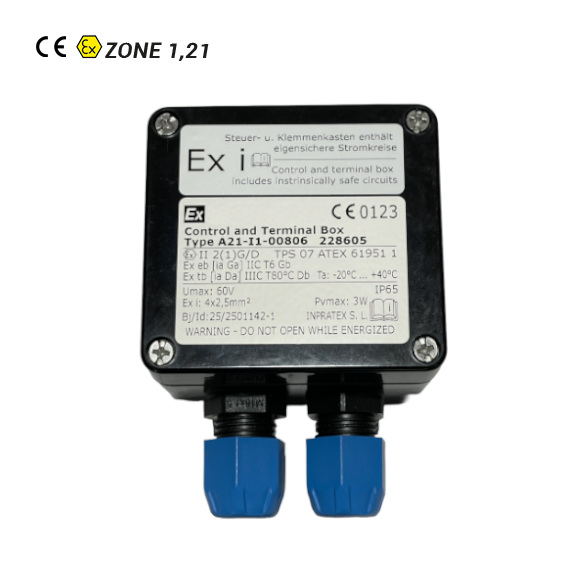

Marking:
II 2(1)G Ex eb [ia Ga] IIC T6 Gb
II 2(1)D Ex tb [ia Da) IIIC T80ºC Db
Certificate: EU-Type Examination Certificate
SEE DATA SHEET FOR FURTHER INFORMATION:
THE DIFFERENT AVAILABLE VERSIONS ARE DETAILED IN THE DATA SHEET
